WAPDA Standard DISCO’s Rating
Transfopower® manufactures Transformers (Pole Mounted & Pad Mounted) using cutting-edge technology and the best material as per WAPDA standards, offering reliable performance and durability. Offering a complete range from 10 kVA to 630 kVA, these transformers are ideal for distribution networks. All pole and Pad-mounted transformers of WAPDA standard ratings undergo bi-annual type testing and are approved by PEPCO.

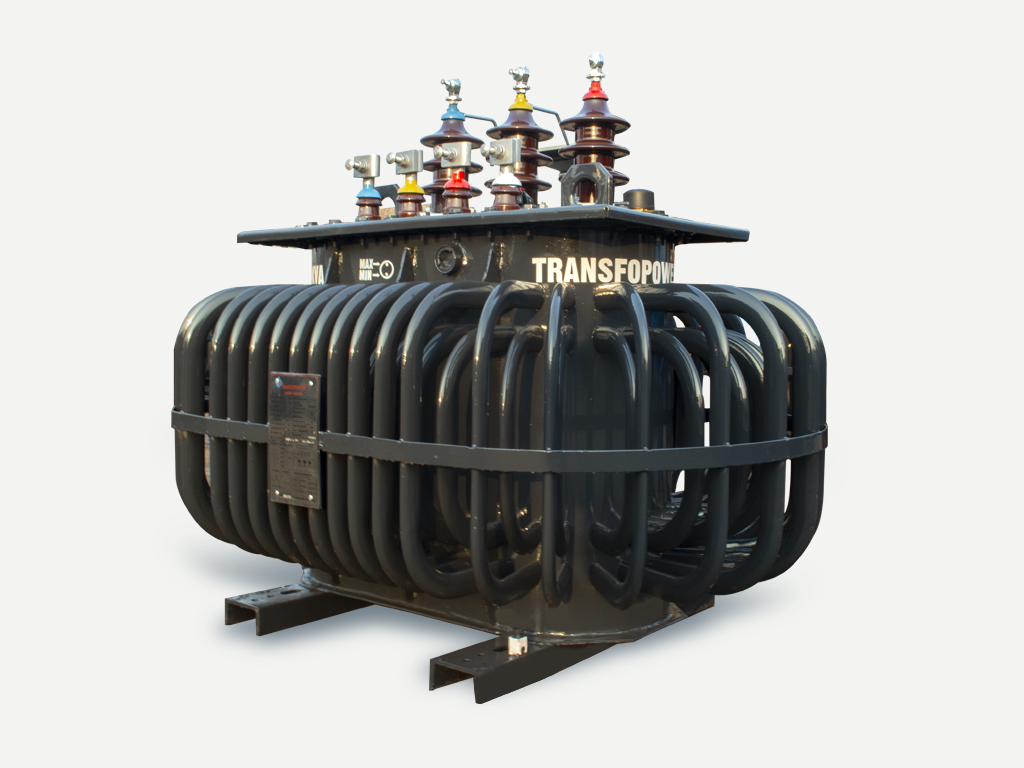

Pole Mounted-Public Utility & Industrial
10 kVA, 15 kVA, 25 kVA, 50 kVA, 100 kVA, 200 kVA, 400 kVA, 630 kVA (WAPDA Standard).
Key Features:
- Voltage Ratio: 11/0.415 kV
- Capacity Range: 10 kVA to 630 kVA
- Vector Group: Dyn11
- Type of Tank: Conservator/Sealed-type
- WAPDA Specifications: DDS-84:2020 (amended to date), IEC-60076
- Application: Ideal for outdoor installations in urban, rural, and industrial areas

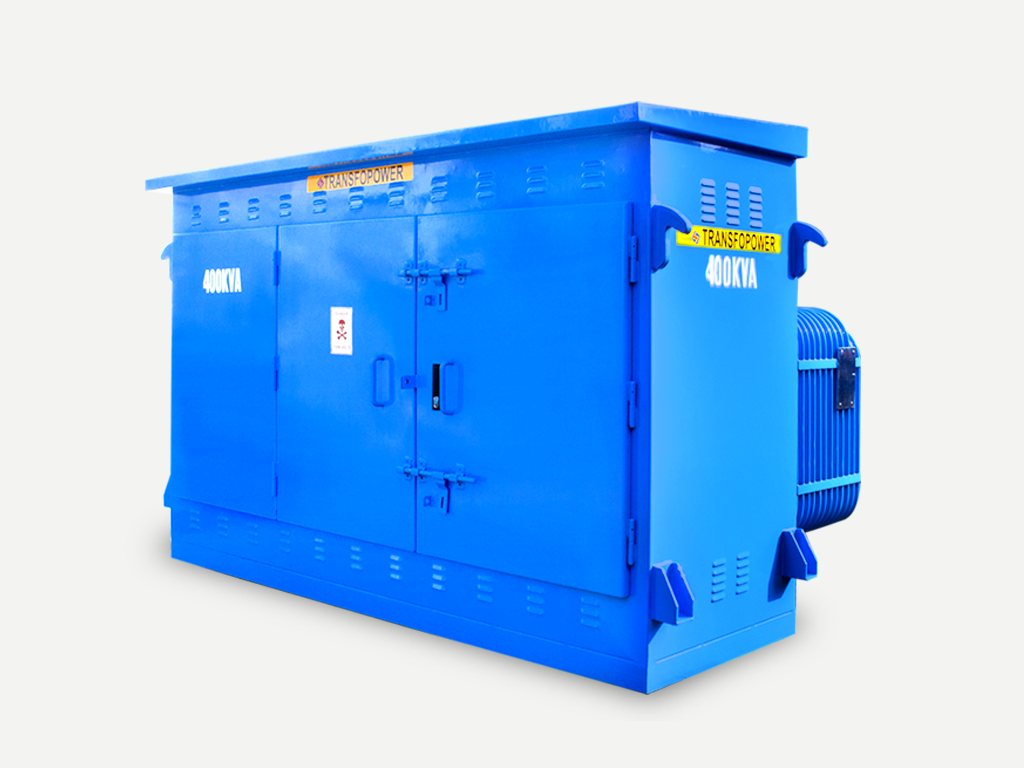

Pad Mounted (Industrial + Housing Utility)
Ranges from 100 kVA to 630 kVA Pad-mounted transformers and 63 kVA (single Phase) Pad Mounted Transformer for Street Lightening.
Unique Features:
- Power coating paint process
- Low loss Core grades, electrolytic Copper wire & foil
- Diamond dotted paper
- Un-inhibited oil according to IEC 60296
- Prime quality hot rolled MS steel sheet
