Transfopower

Static Energy Meters

Rapid advancements in meter technology have brought electronic meters to the forefront, with utilities across Pakistan adopting them to reduce revenue losses.

Transfopower® has successfully designed and developed its own range of static single-phase (2-wire) and static three-phase (4-wire) whole current energy meters with multi-rate tariff functionality. These locally manufactured meters meet or exceed the specifications of electric utilities and have been approved for installation on their systems.

To stay ahead of the curve in meter technology and production techniques, Transfopower® has made significant investments in acquiring the latest, most sophisticated machinery and equipment for manufacturing components and parts. Today, our production facilities are on par with leading international meter manufacturing plants, ensuring top-quality products that meet global standards.

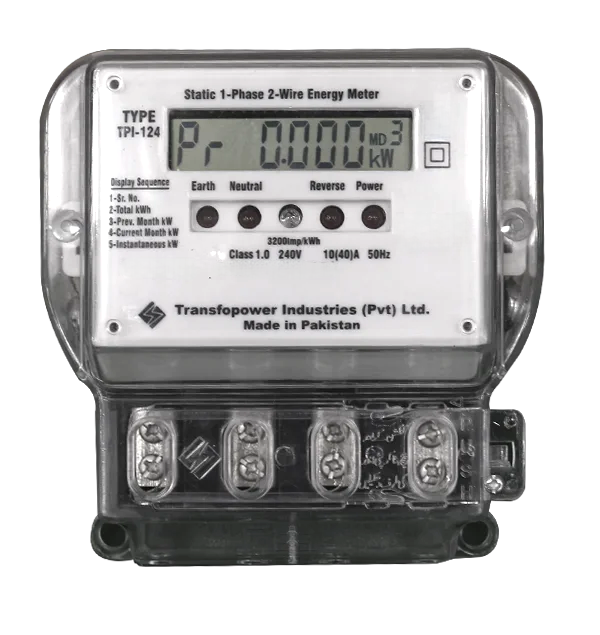

Static Single Phase Energy Meter

Salient Features:

  • Single Phase, Two Wire, 240V, 10(40) A, 50Hz, Accuracy Class 1.0
  • Meter constant 3200 impulses/kWh.
  • IP-54 compliant meter.
  • Starting current 40mA.
  • Operating Temperature: -40°C  to + 85°C
  • EEPROM (Non-volatile Memory) for Data retention
  • Meter complies with IEC Standards 62052-11 & 62053-21 and WAPDA Specification DDS-65 (amended to date)
  • UV-stabilized LCD for extreme temperature conditions.
  • Meter records Energy (kWh) in the absence of Neutral.
  • Advanced technology based on Microcontrollers has been used.
  • Meter Provides High-level Accuracy, High security, Reliability, and Excellent performance.
  • The meter is protected against transients in the power line.
  • Not affected by partial or fully earthed load.
  • The meter is properly shielded against the effect of strong magnetic field.
  • Meter safeguards against the theft of energy (kWh) through dimmer.
  • The meter is equipped with a fixed long-life battery to display readings in case of a power outage.
  • Low battery indication.
  • Protection against the effect of 0.7T Strong Magnet.

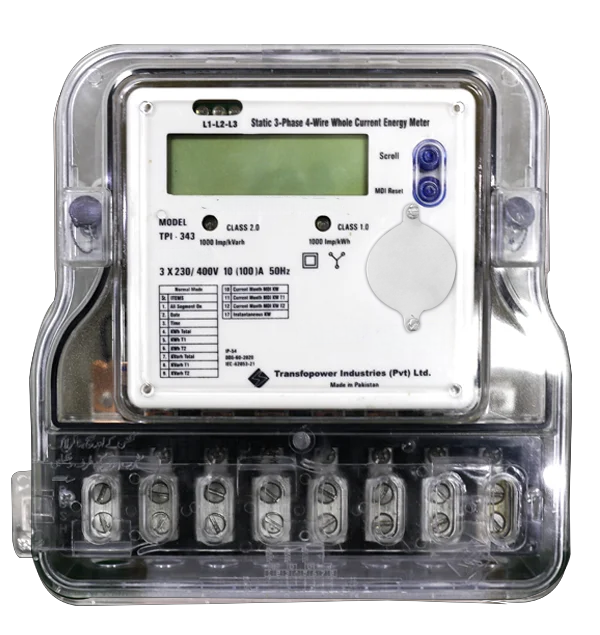

Static Three Phase Energy Meter

Salient Features:

  • Three Phase four wire connection. 3 x 230/400V 50Hz  10(100)A. 1000 impulses /kWh, 1000 impulses/kvarh.
  • IP-54 compliant meter.
  • Starting current 40mA.
  • Operating Temperature: -40°C  to + 85°C
  • EEPROM (Non-volatile Memory) for Data retention
  • Meter Specifications comply with relevant IEC Standards 62052-11,62053-21 & 62053-23.
  • Compliance with WAPDA DDS-60 (amended to date) & K-Electric Specifications for kWh class 1.0 and kvarh class 2.0 (amended to date)
  • Multi-rate with up to 4 tariff TOU/TOD structure.
  • Optical communication conforming to IEC 62056-21 for data downloading.
  • UV-stabilized LCD for extreme temperature conditions.
  • Tampering information along with date and time stamp is recorded.
  • “OPENED” is displayed on the LCD if the meter cover is opened.
  • Phase indicators “L1,L2,L3” on LEDs and LCD.
  • Works under individual phase failure and records Active and reactive energies consumed correctly even on low voltage.
  • The meter is equipped with a fixed long-life battery to display readings in case of a power outage.
  • Low battery indication.
  • Protection against the effect of 0.7T Strong Magnet.

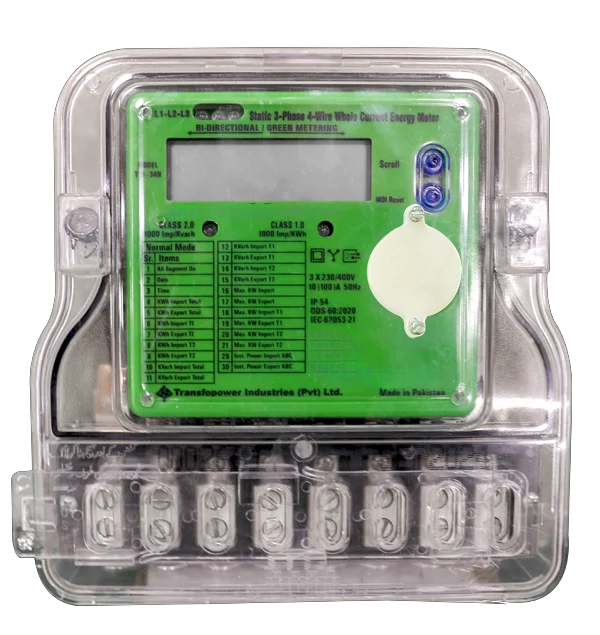

Static Three Phase Bi-Directional Energy Meter

Salient Features:

  • Three Phase four wire connection with separate import and export registers for NET metering connections.
  • 3 x 230/400V 50Hz  10(100)A. 1000 impulses /kWh, 1000 impulses/kvarh.
  • IP-54 compliant meter.
  • Starting current 40mA.
  • Operating Temperature: -40°C  to + 85°C
  • EEPROM (Non-volatile Memory) for Data retention
  • Meter Specifications comply with relevant IEC Standards 62052-11,62053-21 & 62053-23.
  • Compliance with WAPDA DDS-60 (amended to date) for kWh class 1.0 and kvarh class 2.0 (amended to date)
  • Multi-rate with up to 4 tariff TOU/TOD structure.
  • Optical communication conforming to IEC 62056-21 for data downloading.
  • UV-stabilized LCD for extreme temperature conditions.
  • Tampering information along with date and time stamp is recorded.
  • “OPENED” is displayed on the LCD in case the meter cover is opened.
  • Phase indicators “L1,L2,L3” on LEDs and LCD.
  • Works under individual phase failure and records Active and reactive energies consumed correctly even on low voltage.
  • The meter is equipped with a fixed long-life battery to display readings in case of a power outage.
  • Low battery indication.
  • Protection against the effect of 0.7T Strong Magnet.

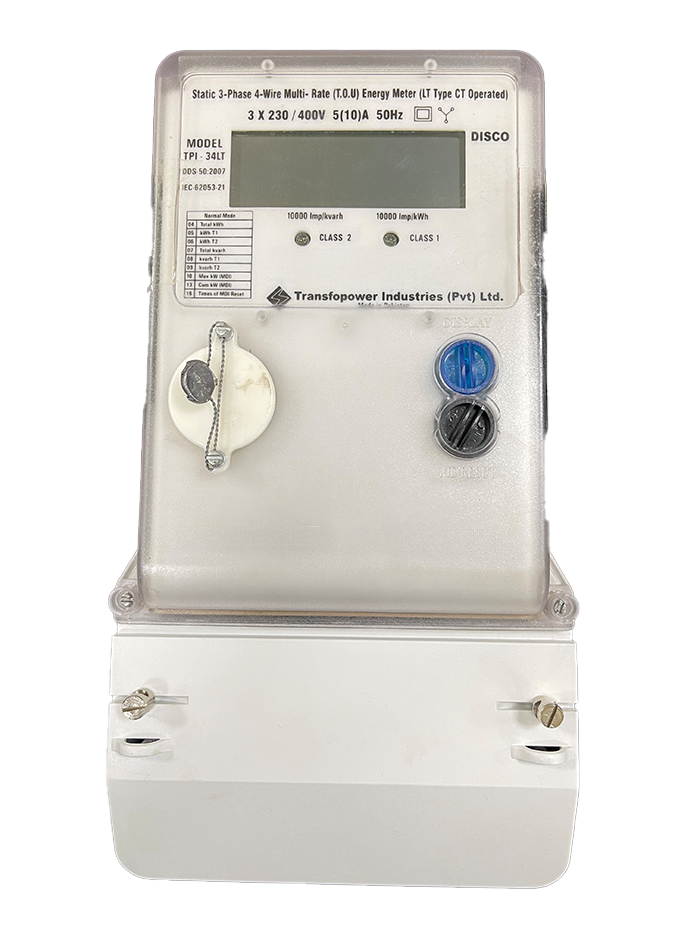

Static Three Phase LT Type CT Operated Energy Meter

Salient Features:

  • Three phase four wire connection. 10000 impulses/kWh, 10000 impulses/kvarh.
  • 3 x 230/400V 50Hz 5(10)A.
  • IP-51 compliant meter.
  • Starting current 10mA.
  • Operating Temperature: -40°C  to + 85°C
  • EEPROM (Non-volatile Memory) for Data retention
  • Meter’s Specification complies with IEC Standards and WAPDA Specifications DDS-50 (amended to date).
  • Multi-rate with up to 4 tariff TOU/TOD structure.
  • Optical communication conforming to IEC 62056-21 for data downloading.
  • UV-stabilized LCD for extreme temperature conditions.
  • Tampering information along with date and time stamp is recorded.
  • “OPENED” is displayed on the LCD in case the meter cover is opened.
  • Works under individual phase failure and accurately records consumed Active & Reactive energies even is low voltage.
  • Using Micro-processes-based advanced technology for higher accuracy, reliability, programming flexibility, and adaptability.
  • High Sampling rate to maintain accuracy even with distorted line voltages and current.
  • The meter is equipped with a fixed long-life battery to display readings in case of a power outage.
  • Low battery indication.
  • Protection against the effect of 0.5T Strong Magnet.
