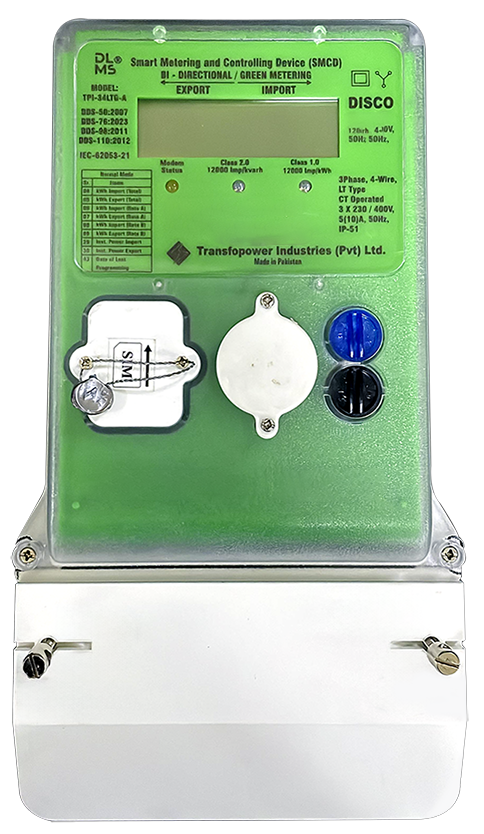

Smart Metering And Controlling Device (SMCD)

TransfoPower’s Smart Metering and Controlling Device (SMCD) is an innovative solution for intelligent energy management. Designed to meet the needs of modern energy systems, the SMCD combines advanced metering capabilities with robust control functions, ensuring accurate energy usage monitoring and efficient resource management.

With features like real-time data communication, remote operation, and integration with IoT platforms, the SMCD empowers utility providers and consumers to optimize energy consumption, reduce wastage, and enhance operational efficiency. Ideal for smart grids, industrial facilities, and residential complexes, the SMCD sets a new benchmark in sustainable energy solutions.

Salient Features:

  • Specially designed for Asset Performance Management System (APMS) and Distribution Transformer with Integrated monitoring, control, and protection unit.
  • Three phase four wire connection. 12000 impulses/kWh, 12000 impulses/kvarh.
  • 3 x 230/400V, 50Hz 5(10)A.
  • Accuracy Class 1.0 kWh and Class 2.0 kvarh
  • Built-in 4G GSM/GPRS module (backward compatible with 3G and 2G).
  • Built-in RS485/Auxiliary ports for external MCCB or sensors integrations.
  • IP-51 compliant meter.
  • Starting current 10mA.
  • Operating Temperature: -40°C  to + 85°C
  • EEPROM (Non-volatile Memory) for Data retention
  • Meter’s Specification complies with IEC Standards and DDS-76 WAPDA Specification (amended to date).
  • Bi-directional measurement mode.
  • Complies to the latest UDIL and DLMS Communication Protocol (Device Language Message Specification)
  • Multi-rate with up to 4 tariff TOU/TOD structure.
  • Optical communication conforming to IEC 62056-21 for data downloading.
  • UV-stabilized LCD for extreme temperature conditions.
  • Tampering information along with date and time stamp is recorded.
  • “OPENED” is displayed on the LCD in case the meter cover is opened.
  • Works under individual phase failure and accurately records consumed Active & Reactive energies even is low voltage.
  • Using Micro-processes-based advanced technology for higher accuracy, reliability, programming flexibility, and adaptability.
  • High Sampling rate to maintain accuracy even with distorted line voltages and current.
  • The meter is equipped with a fixed long-life battery to display readings in case of power outage.
  • Low battery indication.
  • Protection against the effect of 0.5T Strong Magnet.
