MV Switchgears
At Transfopower®, we are committed to delivering high-performance, reliable, and safe medium-voltage 11kV, 630A, 20kA 1-sec, 75kV BIL switchgear solutions. As a Schneider Authorized Channel Partner, we bring advanced engineering expertise and innovative solutions to the power industry, ensuring efficiency, durability, and maximum protection for critical electrical infrastructure.

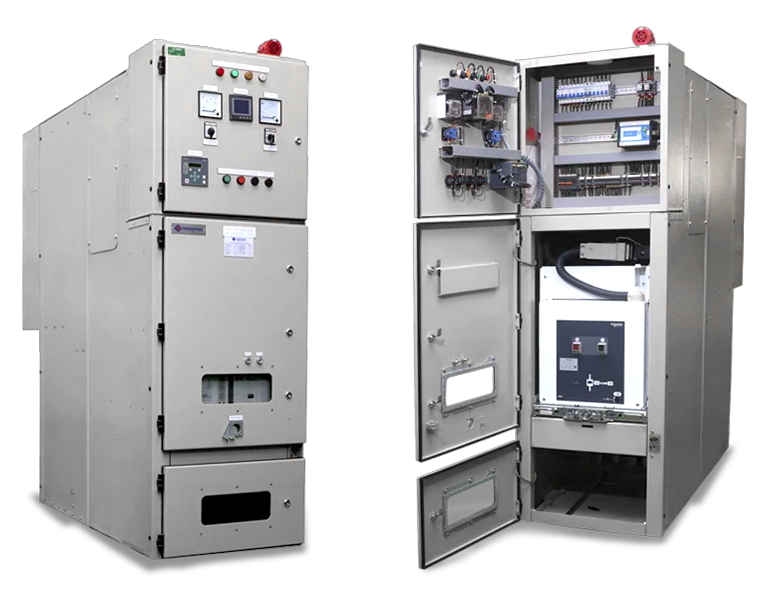

Engineered to meet international standards, our 11kV Metal Enclosed Switchgear offers a robust and complete type-tested solution featuring a Schneider Vacuum Circuit Breaker. With certifications from HV & SC Laboratory, NTDC, RAWAT – Islamabad, our MV switchgear panels undergo rigorous testing as per IEC Standards, ensuring reliability and safety in all operational environments. Our panels shield your infrastructure from faults, minimizing downtime and maximizing safety. Perfect for substations, industrial facilities, and power distribution networks.
Key Features
Enhanced Safety – Multiple interlocking mechanisms, including breaker interlocking at “Test” and “Service” positions with an Earthing Switch interlock, ensure personnel and equipment protection.
Unmatched Reliability – Designed for over 10,000 mechanical operations, our MV Switchgear can withstand harsh conditions, providing long-term, uninterrupted performance.
High-Performance Capability – With proven impulse voltage and short circuit resistance, our MV Switchgear guarantees a stable and safe power supply.
Modular & Scalable Design – Easily customizable for future expansions, adapting to evolving power system requirements.
Energy Efficiency – Optimized to reduce operational costs and improve power management efficiency.
Compact & Space-Saving – Engineered for minimal space requirements, making it ideal for installations where space is a premium.
Environmentally Friendly – Manufactured with eco-friendly materials and designed to minimize energy waste.

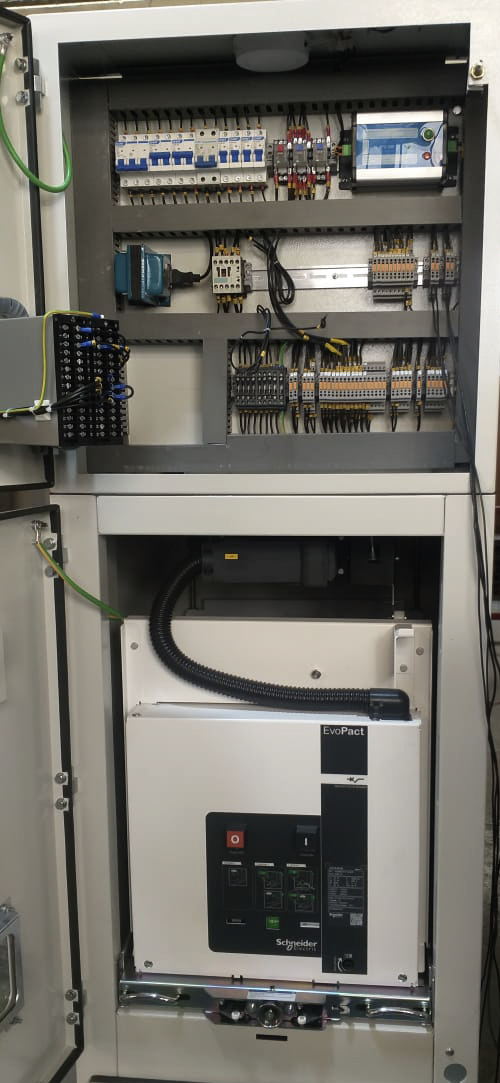

- Transfopower make TIPL-MV, Medium Voltage Switchgear Panel is equipped with Schneider’s Type Tested Vacuum Circuit Breaker
- Suitable for all major industries including Transmission & Distribution (T&D), Oil & Gas, Automotive, Processing Plants, Iron & Steel Mills, Mining, Commercial Buildings, etc

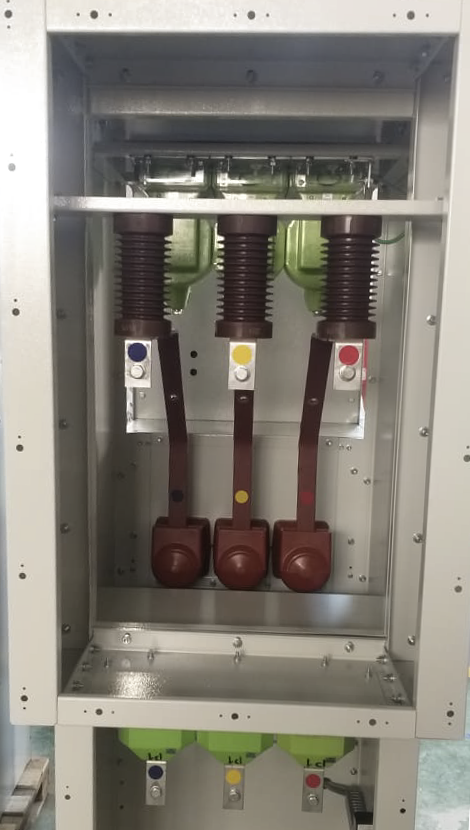

- HVX VCB has embedded pole technology with a Tulip Contact arrangement
- Electrical & Mechanical Interlocking as per IEC Standards
- Compact, Extendible & Economical
- Provision for Circuit Earthing for the safety of personnel
- Built-in guide rail for Circuit Breaker Trolley

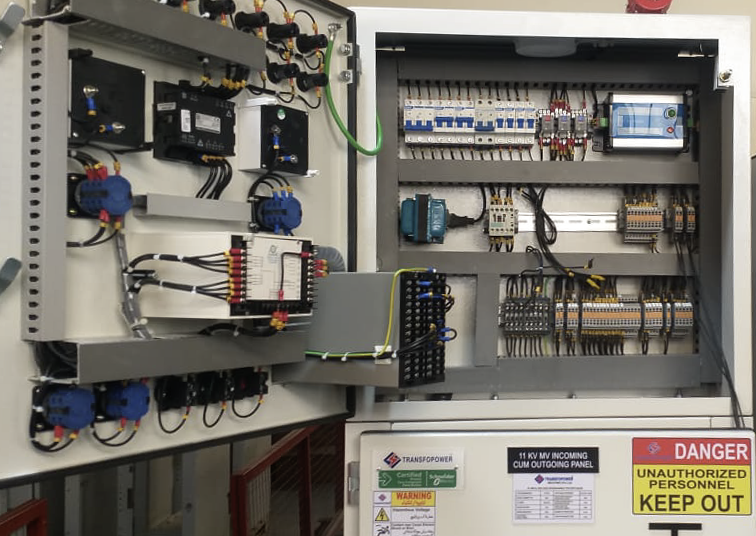

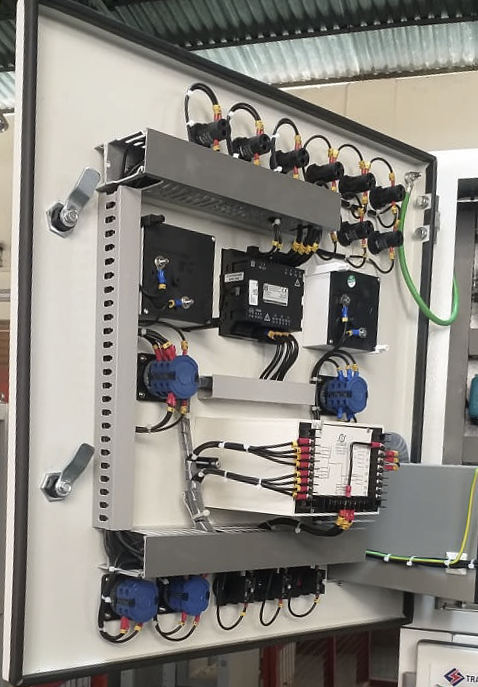

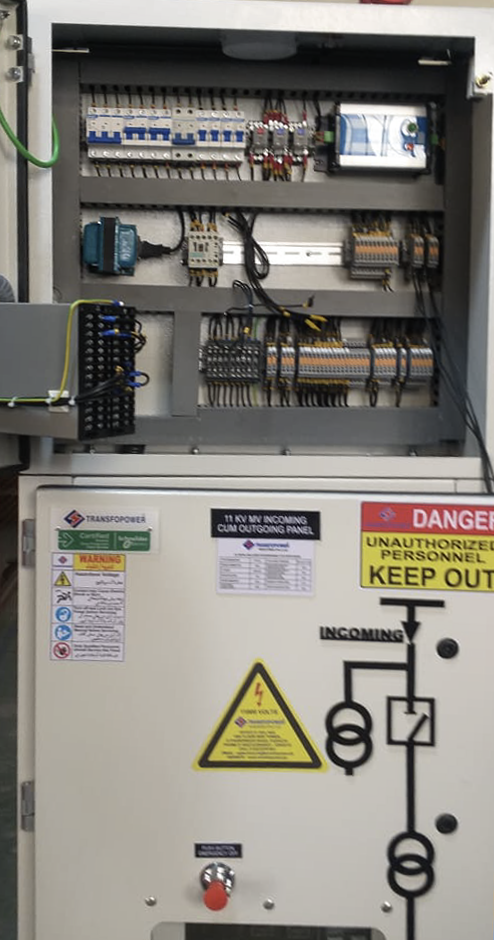

- Digital Control & Protection
- Arrangement to ensure maximum safety for operators

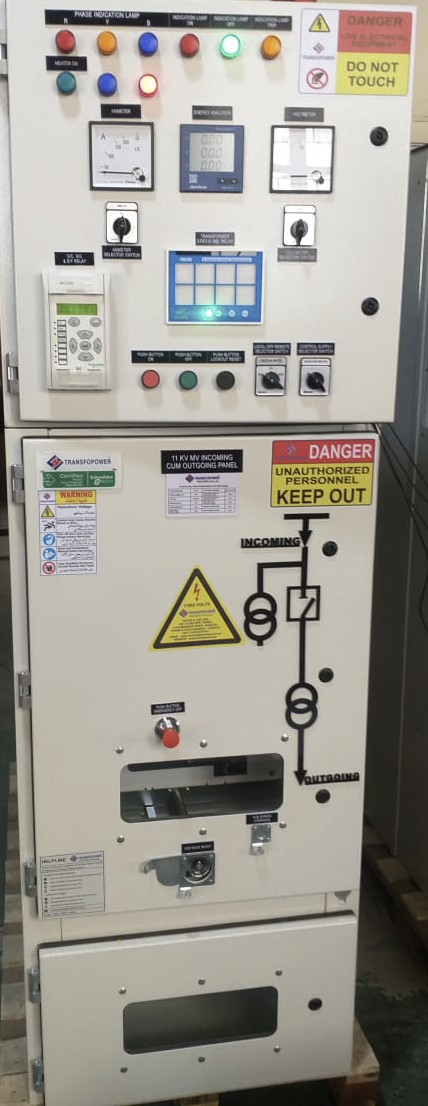

- All operation of the MV Switchgear Panel with closed doors
- Earthing Switch with visible position
- Prevents ingress of dirt, moisture & vermin
- Quick interchange of identical rated Trolleys
- Provision available (on request) for Capacitive Voltage Indication for cables
Technical Specification
| Rated Voltage: | Up to 17.5kV |
| Rated Current: | Up to 2500A |
| Insulation Level: | Up to 95kV BIL |
| Short Circuit: | Up to 31.5kA |
| Protection Class: | IP4X |
| Dimensions (mm): | W = 650/800/1000, D = 1400/1600/1800, H = Up to 2200 |
Inhouse Routine Test of 11kV MV Switchgear Panels
- Visual inspection
- Verification of dimension
- Verification of wiring (Loop Testing).
- Measurement of the resistance of the main circuit (Contact Resistance)
- Suitability and correct operation of protections, control instruments and electrical connections of the circuit breaker operating mechanism
Functional Test
- Operation of functional locks, interlocks, signaling devices and auxiliary devices.
- Withstand voltage on the auxiliary circuits
- Withstand voltage at power frequency
- CB operating time test
- CT ratio and polarity test
- Primary injection
- Secondary injection
- Power frequency test on control circuit 2.5kV for one minute on each unit
